Guangzhou Weipuna Technology Development Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | WPNA |
| Model Number : | GK-156 |
| Price : | $186-198 |
Industrial PC | GK-133 | GK-156 | GK-185 | GK-215 | GK-236 | |||||
Motherboard | Confirmuration | RK3288, J1900, i3, i5, i7 | ||||||||
Interface | WiFi,3/4G module | 802.11b/g/n(optional), Support3g/4g(optional) | ||||||||
HDMI | 1*HDMI output | |||||||||
USB | 4*USB3.0 | |||||||||
Network | 2*RJ45 with 1000 Base-T | |||||||||
Com | com(RS485)*2 | |||||||||
Power supply | 1*DC lock phoenix terminal, Support 9-36V | |||||||||
Audio output | 1*3.5mmaudio | |||||||||
Other | 8*GPIO(optional) | |||||||||
Display | Screen type | 13.3 LCD | 15.6 LCD | 18.5 LCD | 21.5 LCD | 23.6 LCD | ||||
Resolution | 1920*1280 | 1920*1280 | 1920*1280 | 1920*1280 | 1920*1280 | |||||
Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 | |||||
Brightness | 250cdm2 | 250cdm2 | 250cdm2 | 250cdm2 | 250cdm2 | |||||
Brightness Optional | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | |||||
Screen ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |||||
Structure | Front and back cover | Aluminum | ||||||||
Craft | Glass frame paste, aluminum die casting | |||||||||
Color | Black, grey | |||||||||
Heat dissipasion | Fanless aluminum fin heat dissipation | |||||||||
Panel indicator light | Power state, hard disk state | |||||||||
Whole size（mm） | 450*330*140 | 500*330*130 | 590*394*140 | 650*440*130 | 700*530*140 | |||||
Touch screen | Type | Projected capacitive touch screen | ||||||||
Touch point | 10 point touch | |||||||||
Physical Resolution | 4096x4096 | |||||||||
Response time | <5ms | |||||||||
Accuracy | <2.5mm | |||||||||
Transparency | ≥90% | |||||||||
Protection | The surface is coated with 1:1 PVC protective film | |||||||||

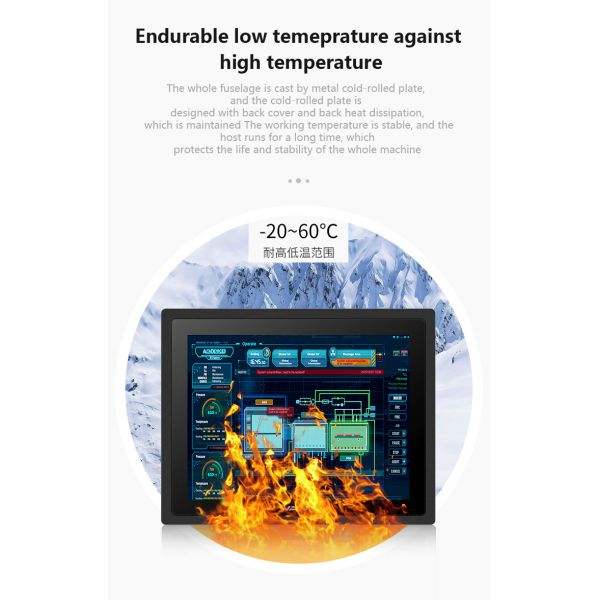

Others | Working environment | -20℃~70℃; Humidity: 10%~90% | ||||||||
Storage environment | Temperature: -40℃~80℃; Humidity: 10%~90% | |||||||||
Installation ways | Embedded、VESA100*100mm | |||||||||
Power consumption | 24W | 25W | 33W | 34W | 37W | |||||
Accessories | Manual | User Manual, certificate of qualification, warranty card | ||||||||
Bracket | wall mounted bracket, embedded bracket, desktop bracket(optional) | |||||||||
Adapter | Power adapter | |||||||||
|
|
